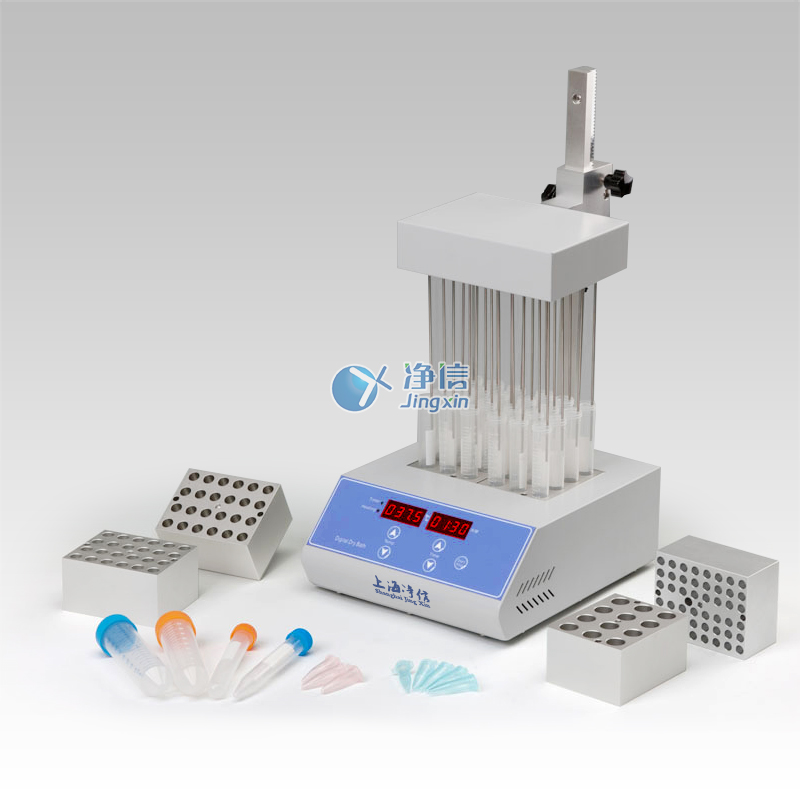

Nitrogen Blowing Apparatus

Model:JXDC-10

Brand:Jingxin

Specifications :Set

Introduction:JXDC-10 nitrogen purging instrument adopts microcomputer and PID fuzzy control technology,

product description:

JXDC-10 nitrogen purging instrument adopts microcomputer and PID fuzzy control technology, and uses high-purity aluminum material as the heat transfer medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range, and high precision. Its working principle is to blow nitrogen or air to the surface of the heated sample quickly, continuously and controllably, and set the heating temperature according to the evaporation speed and boiling point of the concentrated solvent to achieve rapid concentration of a large number of samples.


Features:

◆ The blowpipes are independent of each other and will not cause cross-contamination;

◆ Each air needle channel can be used in combination or alone;

◆ The system has high temperature control accuracy, wide temperature control range, temperature numerical control display, and temperature calibration is convenient;

◆ The product has beautiful appearance, simple operation, safe and reliable use;


Product parameters:

Main parameters

 Parameter range

temperature range

+5℃~150℃

Temperature control accuracy

≤±0.5℃

Temperature uniformity

≤±0.5℃(@100℃)

Heating time

≤30min(40℃ to 150℃)

gas pressure

0.05Mpa

Air needle length

150mm

Fuse

250V 3A Φ5×20

Dimensions

260X220X475(mm)

Timing

99h59min

Display accuracy

0.1℃

Temperature uniformity

≤±0.1℃(@150℃)

Lifting stroke

200mm

Gas flow

15L/min

Number of modules

1

power

200W

weight

7.0kg


Optional accessories:

Model

Test tube diameter

Test tube number

MD03

10mm(47mm)Hole depth

24

MD04

12mm(47mm)Hole depth

24

MD05

13mm(47mm)Hole depth

24

MD06

15mm(47mm)Hole depth

16

MD07

16mm(47mm)Hole depth

16

MD08

19mm(47mm)Hole depth

12

MD09

20mm(47mm)Hole depth

12

MD10

26mm(47mm)Hole depth

8

MD11

28mm(47mm)Hole depth

4

MD12

40mm(47mm)Hole depth

3

MD15

1.5ml (Centrifuge tube)

24

MD16

2.0ml (Centrifuge tube)

24

定制模塊

Custom module

由客戶提供樣品管規(guī)格

Sample tube specifications provided by the customer

——
